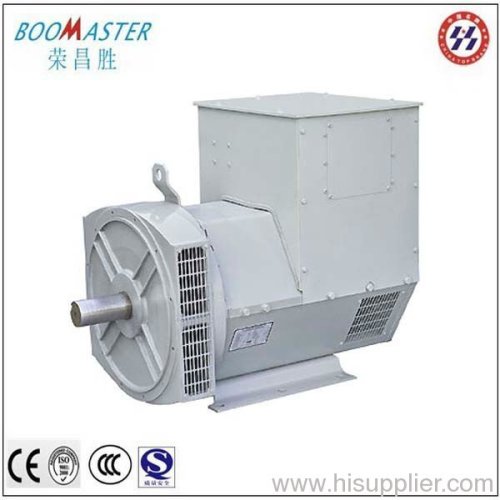

STC Brush alternator generator with best selling STC Series manufacturer from China Fuzhou Boomaster Power Co., Ltd

STC Brush alternator generator with best selling

Payment Terms:	T/T,L/C
Place of Origin:	Fujian, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: STC Series

Production Capacity: 1000 Set per month

Delivery Date: 20-30 days

Brand Name: BOOMASTER

Means of Transport: Ocean

Packing: Plywood or wooden cases

Type: Others

Color: As your request

best selling magnet generator
1.power range:3-50kw
2.single/three phase
3.Brush alternator with AVR
4.sigle/double bearing

ST/STC Brush alternator

best selling magnet generator

Under the following environment,the generator could run continuously:

1.Altitude:not exceed 1000m

2.Ambient temperature:-15°C-40°C

3.Relative air humidity:≤90%

Operating Conditions:
Under the following environment, The generator could be continuous and rated running:
Above sea level: Not exceed 1000m
Cooling air temperature: 258~313K(-15 ^oC ~ 40 ^oC)
Relative air damping: not exceed 90%

Technical Date

Model	Output (kW)		Voltage(V)	Current (A)	Power factor	Speed	Pole number
Model	KVA	kW	Voltage(V)	Current (A)	(cos)	(r.p.m)	Pole number
STC-3	3.8	3	400	5.4	0.8	1500	4
STC-5	6.3	5	400	9	0.8	1500	4
STC-7.5	9.4	7.5	400	13.5	0.8	1500	4
STC-8	10	8	400	14.4	0.8	1500	4
STC-10	12.5	10	400	18.1	0.8	1500	4
STC-12	15	12	400	21.7	0.8	1500	4
STC-15	18.8	15	400	27.1	0.8	1500	4
STC-20	25	20	400	36.1	0.8	1500	4
STC-24	30	24	400	43.3	0.8	1500	4
STC-30	37.5	30	400	54.1	0.8	1500	4
STC-40	50	40	400	72.2	0.8	1500	4
STC-50	62.5	50	400	90.2	0.8	1500	4
