Diesel Generator Set of Yangdong with Good Quality BY-14 manufacturer from China Fuzhou Boomaster Power Co., Ltd

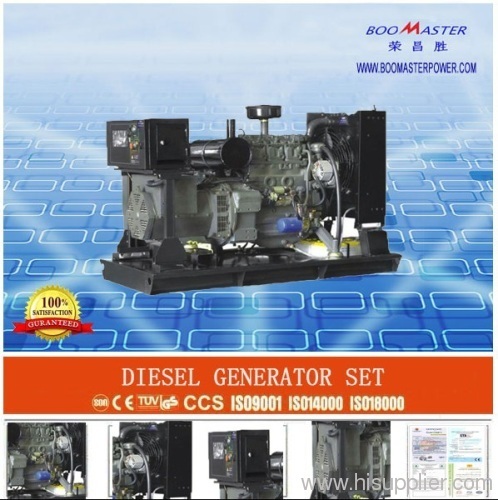

Diesel Generator Set of Yangdong with Good Quality

Payment Terms:	T/T,L/C
Place of Origin:	Fujian, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: BY-14

Production Capacity: 300 Set per Month

Delivery Date: 20-25days

Brand Name: BOOMASTER

Frequency: 50HZ

Color: As your request

Means of Transport: Ocean

Packing: Plywood or wooden cases

Output Type: AC Three Phase

Speed: 1500 rpm

Rated Power: 10.8KW/14KVA

1) Brand-new engine,w/start motor.
2) Brushless alternator,single bearing,flange connection,IP23,H insulation class,with AVR.

Product Overview

1) Brand-new engine,w/start motor.

2) Brushless alternator,single bearing,flange connection,IP23,H insulation class,with AVR.

3) Auto control panel with LCD display.

4) Engine mounted battery-charging alternator,Genset with battery charge of main supply.

5) Circuit Breaker,Exhaust Silencer.

6) Copper Radiator for 40℃ ambient temperature and double-deck cooling,with fan guard and front guard.

7) Anti-vibration pads fixed between engine/alternator and base frame to ensure the compete genset running stable.

8) Skid-mounted bottom 8 hours fuel tank.

9) Extemal recessed emergency stop button for extra safety.

10)Optional:Soundproof,ATS(automatic transfer switch),AMF panel,Trailer,Parallel system.

14Kva Yangdong diesel generator

Genset Specification

Genset Model

BY-14

Prime Power(Kw/Kva)

10.8\14

Frequency

50Hz

Structure type

Open or Soudproof

Dba"@7m

silent genset 55-78 dba @ 7m , open type75-98 dba @7m

Engine Model

YD480D

Alternator Model

STG164C

Open type DimensionL*W*H(mm)

1700x700x900

Weight(Kg)

650

Silent type DimensionL*W*H(mm)

1830x880x950

Weight(Kg)

750

Engine Detail

Manufacturer

Quanchai engine Co.,Ltd

Model

YD480D

Engine speed

1500rpm

Engine power

…………Prime power

13KW(50Hz)

Type

vertical,4 cylinder,in-line,water-cooled,four-stroke

Aspiration

Naturally aspirated

Governor

electrical

Bore*Stroke

80*90mm

Alternator Detail

Model

STG164C

Output power(Kw/Kva)

10.8\14

Number of phase

Power factor(Cos Phi)

0.8

Number of Pole

Exciter type

Shunt

Insulation class

Voltage regulation

0.50%

Total haarmonics (TGH/THC)

Wave form:Nema=TIF

Wave form:I.E.C=THF

Bearing

single

Coupling

Direct
